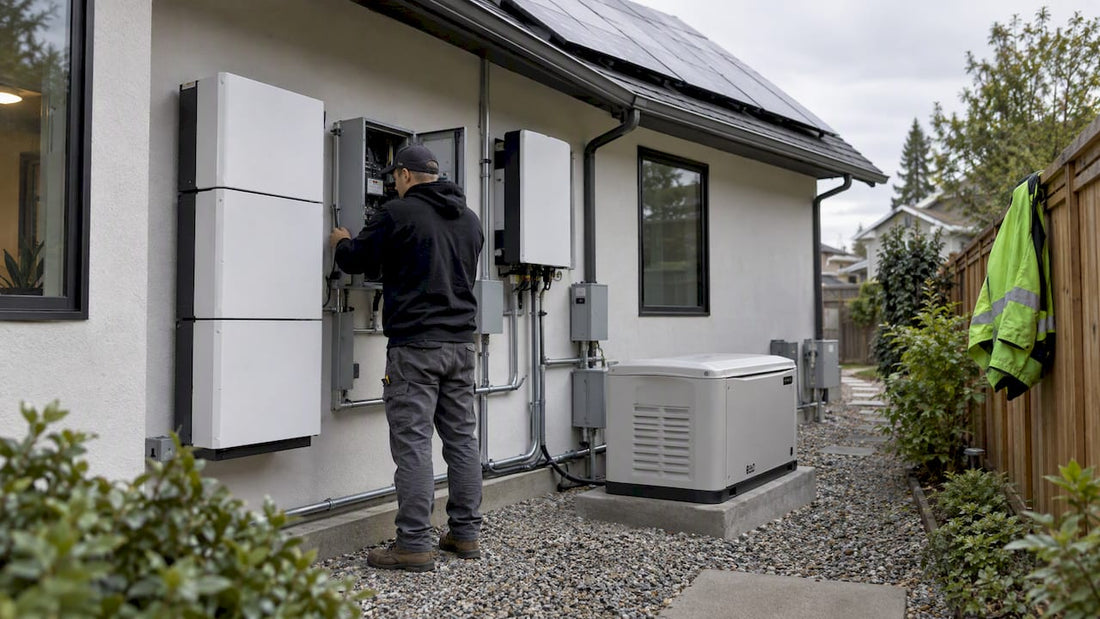

Solar panels and generator backup system

Installer Checklist: Solar Plus Generator Setup, Solar First Design

For reliable home backup, pair solar panels with battery storage as your daily power source, and use a properly wired generator only as backup and charger through a transfer switch or hybrid inverter. Size your batteries for autonomy, match your generator to your inverter’s charging capacity, and never let the generator connect to your home’s wiring without approved transfer equipment. Get those three things right and the rest is mostly fine-tuning.

TL;DR:

  • Properly sized batteries should provide sufficient autonomy to minimize generator run time during outages, especially for extended power needs.
  • The generator must be matched to the inverter’s AC input rating and connected through a transfer switch to ensure safe and code-compliant operation.
  • A solar-first hybrid system offers higher uptime, easier future expansion, and prioritizes solar and battery use over generator reliance.
  • Equipment requirements include UL 1741 certified inverter/chargers, a well-ventilated battery bank, and comprehensive safety disconnects and grounding measures.
  • Using site-specific load data and detailed sizing calculations prevents under- or over-sizing components, reducing fuel waste and equipment stress.
Gridwiseliving
Explore More Independent Home Solutions
Gridwise Living offers durable solar systems and other practical solutions for families seeking greater energy independence at home.
Explore Gridwise Living

Table of Contents

Which system architecture fits your home

Most homeowners choose from four basic setups, and the right one depends on budget, how long you need to ride out an outage, and how much wiring complexity you can tolerate.

A solar-first hybrid system puts photovoltaic panels and batteries at the center, with the generator wired into a dedicated AC input purely to recharge the battery bank or cover rare demand spikes. The Department of Energy’s Solar Plus X framework describes this as the preferred structure: PV, storage, and controls planned together so the generator fills gaps rather than carrying the house. Batteries become the coordinating element, smoothing the handoff between solar production, stored energy, and backup fuel.

A grid-tied system with battery storage stays connected to the utility most of the time, draws down the battery during outages, and islands automatically when the grid drops. Net metering rules and islanding limits vary by utility, so this setup depends heavily on your interconnection agreement.

An off-grid system with a generator skips the utility entirely and leans on the generator more regularly, especially during long stretches of poor sun. Portable solar generator units, meanwhile, work well for RVs, job sites, or a single refrigerator and some lighting, but they fall short of whole-house backup because their battery capacity and inverter output are built for portability, not sustained household load.

Trade-offs across the four options break down roughly like this:

  • Solar-first hybrid: highest uptime, moderate to high upfront cost, easiest to expand later.
  • Grid-tied with battery: lower cost, good day-to-day savings, limited backup during extended grid-down events.
  • Off-grid with generator: works anywhere, higher fuel dependence, more frequent maintenance.
  • Portable solar generator: lowest cost and simplest install, but limited to small loads and short runtimes.

What equipment you actually need

A complete setup has more moving parts than most people expect, and a clear checklist helps when you’re writing a scope of work for a contractor.

  • PV array with a combiner box and rated disconnects, plus mounting hardware and conduit runs sized for your roof or ground-mount layout.
  • A hybrid inverter/charger (preferred) or a separate inverter paired with a charger, built to a recognized safety standard such as UL 1741 for grid-interactive equipment.
  • A battery bank with a defined usable kWh rating, a battery management system, proper enclosure, and ventilation appropriate to its chemistry.
  • A generator connected either to the inverter’s dedicated AC input or through a transfer switch, which may be manual, automatic, or wired to a critical-loads subpanel.
  • Balance-of-system items: breakers sized to code, surge protection, grounding electrodes, carbon monoxide alarms, and an accessible exterior AC disconnect.

The Department of Energy’s balance-of-system guidance notes that both stand-alone and grid-connected systems need power conditioning, safety disconnects, and metering, and recommends UL-listed, grid-interactive inverters for safe interconnection. Skipping any of these items is how backup systems become safety liabilities instead of safety nets.

Pro Tip: Ask your installer for the inverter’s AC input current rating before you pick a generator, not after. Matching those two numbers first saves a return trip and a mismatched charger.

How to size your panels, batteries, and generator

Sizing starts with five numbers: your daily energy use in kWh, your peak power demand in kW, your worst-month sun hours, how many hours or days of autonomy you want, and how much generator runtime you’re willing to accept.

  1. Estimate PV array size. Divide daily kWh needed by worst-month peak sun hours, then divide again by a conservative efficiency factor (commonly 0.75 to 0.8 to account for wiring losses, temperature, and soiling) to get your target array size in kW.
  2. Size the battery bank. Usable kWh equals daily energy use multiplied by your desired autonomy, divided by depth of discharge and round-trip efficiency. Lithium batteries typically support deeper discharge than lead-acid, so your chemistry choice changes the math meaningfully.
  3. Size the generator. Match it to your inverter/charger’s AC input rating, plus your live essential loads, plus a surge margin for motor starts like well pumps or air conditioner compressors.
  4. Check runtime trade-offs. A larger battery bank means fewer generator starts; a smaller one means more frequent, shorter runs. Decide which you’d rather manage.
  5. Use real site data when possible. A battery sizing workbook approach, such as the one in the Creation Energy battery installation guide, uses hourly meter or PVWatts data to convert actual loads and solar production into battery-unit counts and inverter sizing, which beats guesswork from average monthly bills.

A cabin draws 10 kWh a day, with worst-month sun at 4 peak sun hours. Dividing 10 by 4 and then by 0.75 gives a target PV array of about 3.3 kW. A generator sized to match a 5 kW inverter charging input, plus a well pump surge, would land in the 7,000 to 8,500 watt range. These figures are illustrative for this cabin example only, not a sizing standard for every home. For a deeper walk-through with a larger household example, see this home solar backup sizing guide, and for battery-specific guidance, this solar battery sizing resource covers the 10 to 15 kWh range common in single-family homes.

Generators sized well below their inverter’s AC charging capacity run more often and for longer, according to field notes on off-grid system sizing, which treat the generator as a charger and margin source rather than the home’s main energy supply. That framing changes how you size it: enough to recharge efficiently, not enough to carry the house indefinitely.

Wiring choices to discuss with your electrician

Never feed a generator directly into a solar charge controller. The two correct entry points are the inverter’s dedicated AC input, built for exactly this purpose, or a transfer switch that isolates the generator from both the grid and the PV system.

  • A whole-house automatic transfer switch covers every circuit and switches sources without you touching anything, at a higher material and labor cost.
  • A critical-loads subpanel limits backup to chosen circuits (refrigerator, well pump, a few outlets), which lowers cost and lets you use a smaller generator.
  • A manual transfer switch costs less than an automatic one but requires you to flip it yourself during an outage, which matters if you’re often away from home.

Neutral bonding matters more than most homeowners expect. Some generators output a floating neutral, others a bonded one, and your inverter expects a specific configuration. A mismatch here can cause improper transfer behavior or create a shock hazard, so confirm compatibility in writing with whoever installs the system. NFPA generator safety guidance specifically flags this bonding mismatch as a common installation error worth checking before commissioning.

Grounding electrodes, surge arrestors, and GFCI protection where code requires it all belong in the same conversation as the transfer switch, not as afterthoughts. Ask your contractor for a one-line diagram, an accessible exterior AC disconnect, and copies of any interconnection forms your utility requires before work begins. A 50-amp automatic transfer switch is a common fit for mid-size homes pairing a whole-house generator with a hybrid solar system.

Electrician inspecting transfer switch wiring

Setting up autostart logic without wasting fuel

Autostart settings decide how often your generator runs and how much fuel it burns over a season, so getting the thresholds right pays off quickly.

  • Trigger a start around 20 to 25% state of charge, sustained low voltage, or a forecast of several poor-sun days in a row.
  • Stop the generator around 60 to 80% state of charge rather than waiting for a full charge, since topping off the last 20% takes disproportionately long and burns fuel for comparatively little gained capacity.
  • Match the generator’s continuous output to the inverter’s AC charging limit so the charger isn’t throttled and the generator isn’t running underloaded.
  • Add delay timers and hysteresis so the system doesn’t short-cycle the generator on and off during borderline conditions.

Some hybrid inverters support schedules or integration with forecast services, letting the system anticipate a cloudy stretch and start the generator proactively rather than reactively.

Pro Tip: *Set your stop threshold a little lower than feels intuitive.

Staying within safety and code requirements

Generator placement is non-negotiable. NFPA guidance, mirrored by ESFI’s portable generator safety tips, calls for running portable units outdoors, at least 20 feet from doors, windows, and vents, and never inside an attached garage even with the door open. Carbon monoxide alarms near sleeping areas are a baseline safety measure, not an optional extra.

  • Any connection between a generator and household wiring requires a properly rated transfer switch installed by a qualified, licensed electrician.
  • Inverters used in grid-interactive systems should meet UL 1741, the standard referenced in DOE’s balance-of-system guidance for safe interconnection.
  • Store fuel away from living spaces and let a standby generator cool before refueling.
  • Grid-tied systems need a formal interconnection process with the utility, because backfeeding power onto utility lines during an outage can injure line workers.
  • Commissioning should confirm correct isolation and the right neutral and ground configuration before the system is considered live.

Skipping the transfer switch to save money is the single most dangerous shortcut in this entire process, and it’s also the one most likely to void a warranty or an insurance claim after the fact.

Commissioning and ongoing maintenance

A system is only as reliable as its last test, which is why NFPA 110 guidance on emergency and standby power systems emphasizes recurring testing over a one-time install.

  1. Walk through the one-line diagram with your installer, confirm inverter settings, and run a live transfer test on the ATS before calling the job done.
  2. Verify CO alarms are installed and working near sleeping areas and anywhere the generator exhaust could drift.
  3. Exercise the generator monthly under light load, and check battery health quarterly.
  4. Run a full annual load test and update inverter firmware when the manufacturer releases it.
  5. Keep basic maintenance like air filters and oil changes on your own schedule, but call a licensed electrician for anything involving the transfer switch, grounding, or interconnection wiring.

Keep a simple log of test dates and results, and stock a small spare-parts kit (filters, fuses, a spare battery for the ATS controller) so a minor failure doesn’t turn into a multi-day outage.

Common mistakes and quick fixes

A generator that runs far more often than expected usually means it’s undersized relative to the inverter’s AC charging capacity: match the two ratings and the problem usually disappears. Skipping the transfer switch entirely is the most dangerous shortcut, since it risks backfeeding the grid and endangering utility workers. An undersized battery bank causes frequent, short generator starts that waste fuel: add capacity or widen your autostart hysteresis. When something feels off, check the inverter’s alarm log, the ATS status indicator, the generator’s exhaust and CO alarm status, and your battery’s state of charge history before assuming the worst.

Why Gridwise favors a solar-first, battery-coordinated design

Some companies recommend battery-coordinated, solar-first systems with the generator held in reserve, because that order of operations protects the battery, limits fuel use, and matches how DOE’s Solar Plus X framework describes resilient design. Whole home solar generators can fit whole-home architectures, while smaller units suit smaller homes or partial backup needs. Both are built around the same principle: solar and batteries carry the daily load, and the generator steps in only when needed.

— Gridwise

Ready to put this system in your home

Once you know roughly what your home needs, the next step is matching real products to that plan rather than guessing at specs. Our Powerhouse Gen 2 Whole Home Solar Generator is built for households that want full-home coverage with solar and battery doing the daily work. For a combined solar generator and transfer switch in one purchase, the Powerhouse Gen 2 Solar Generator and Transfer Switch saves a separate wiring step. Smaller homes or partial backup needs are often better served by the High Capacity Lithium 1800, and a standalone 50-amp automatic transfer switch pairs with an existing generator if you already own one.

Gridwiseliving

  • Pull together your one-line diagram and recent utility meter data before contacting an installer.
  • Tell your installer the autonomy you want in hours or days, not just a generic “backup” request.
  • Browse the full solar energy systems collection or the generators collection to compare specs side by side.

Reach out to the company’s customer service for compatibility guidance before buying, as they can help you match the right combination to your home’s actual numbers.

Where to verify the details

For code and design specifics beyond this guide, see DOE’s Solar Plus X, DOE’s balance-of-system guidance, NFPA’s generator safety tips, and the Creation Energy battery installation guide. For home-system safety checks beyond solar, this battery backup safety checklist and this UPS runtime sizing guide cover related equipment.

Sources

FAQ

What is a good generator for both solar and gas backup?

A dual-fuel or gas generator sized to match your inverter’s AC charging input works well as backup, as long as it connects through a transfer switch or a dedicated inverter AC input rather than directly into household wiring. The right size depends on your inverter’s charging capacity and your largest motor-driven loads, which this generator sizing guide walks through in more detail.

Why is connecting a generator directly to household wiring dangerous?

Plugging a generator straight into a wall outlet or panel without a transfer switch risks backfeeding electricity onto the grid, which can injure utility workers and damage equipment. NFPA and ESFI guidance both require a properly rated transfer switch installed by a qualified electrician for any generator connection to house wiring.

How long will a solar generator run a refrigerator?

Runtime depends on the generator’s usable battery capacity and the refrigerator’s actual draw, which varies by model and how often the door opens. Sizing it correctly means checking the refrigerator’s rated wattage against the unit’s usable kWh, the same math used in broader home battery sizing for other appliances.

Can a generator and solar system work together safely?

Yes, when the generator connects through a hybrid inverter’s dedicated AC input or a transfer switch rather than tying directly into the solar charge controller or household wiring. This is the architecture DOE’s Solar Plus X framework describes, with the battery coordinating between solar production, stored energy, and generator charging.
