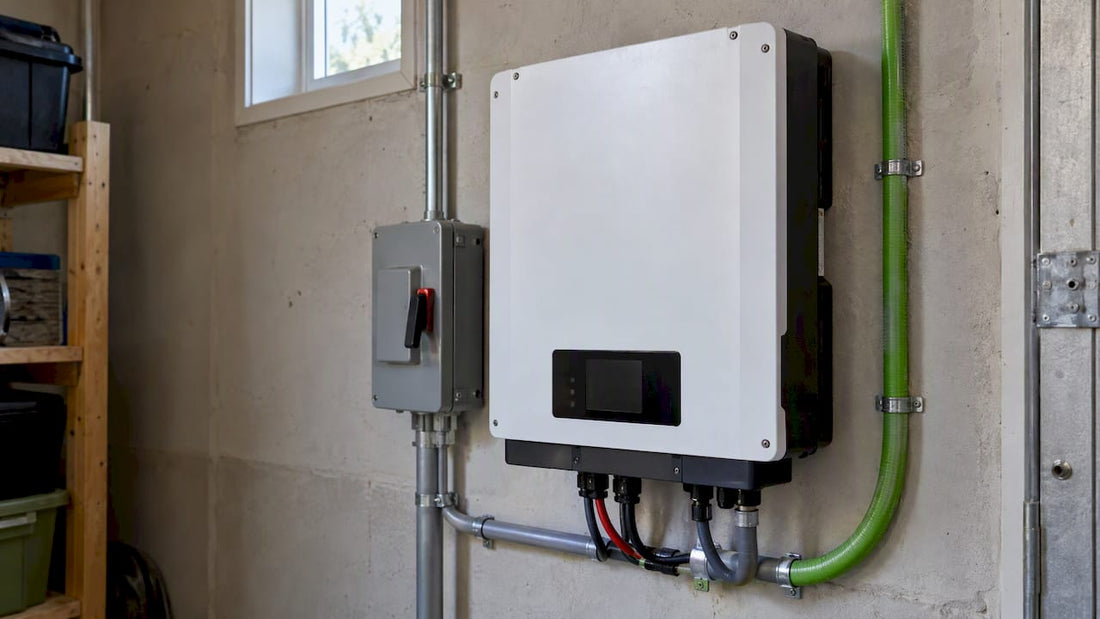

Solar inverter mounted in a home utility room

Solar Inverter Overload: 5 Causes to Check Before Calling an Installer

If your inverter is throwing a fault code, shutting down repeatedly, or showing flattened output on sunny days, you are likely seeing an overload response, and the right first move is to reduce simultaneous AC loads and check your monitoring app for error codes before touching any wiring. Most overload events are protective, not catastrophic, and resolve once the extra demand clears. Persistent faults or heat and odor mean it’s time to call a licensed installer.

TL;DR:

  • Overcurrent can occur without an inverter power overload because current may exceed a wire, breaker, or component’s safe rating on its own.
  • Brief startup surges from air conditioners, well pumps, and refrigerators can trip protection even when steady running demand remains within the inverter’s rating.
  • Calculate the DC to AC ratio by dividing total panel wattage at standard test conditions by rated AC output, then check the exact model’s maximum.
  • Occasional brief clipping on the sunniest days is normal, but frequent clipping combined with repeated recovery cycles increases heat exposure and component wear.
  • Log fault codes, timestamps, outdoor temperatures, and running appliances during recovery cycles so an installer can diagnose the pattern.
Gridwiseliving
Explore Solar Options for Home Independence
Gridwise Living offers solar systems designed to support energy independence and more self-reliant living at home.
Explore solar systems

Table of Contents

What inverter overload is and how it differs from overcurrent

An inverter overload happens when power demand or DC input exceeds the inverter’s rated continuous AC output. Rather than failing outright, inverters respond by clipping excess power, derating output as internal temperatures climb, or tripping a protective fault, according to SolarEdge’s oversizing guidance.

Overcurrent is a related but distinct problem: it describes current exceeding a wire, breaker, or component’s safe rating, which can happen even without a true power overload. A key distinction is surge versus continuous capacity. Inverters carry a rated AC output for sustained operation and a separate, higher surge rating for brief spikes. Oversizing the DC array relative to that AC rating (a DC/AC ratio set higher than the inverter model allows) is a normal design choice, but excessive oversizing causes the inverter to spend more time clipping at peak sun, running hotter, and tripping protective faults rather than converting all available power.

What inverter overload is and how it differs from overcurrent — overview diagram

What typically causes a solar inverter to overload

Most overload events trace back to a handful of recurring triggers. Recognizing which one matches your situation makes troubleshooting much faster.

  • Oversized arrays: a DC/AC ratio set higher than the inverter model allows pushes the unit into frequent clipping on bright days.
  • Simultaneous high AC demand: running several large appliances at once, especially with motor-driven loads, can exceed continuous output.
  • Motor startup surges: air conditioners, well pumps, and refrigeration compressors draw a brief inrush current well above their running wattage, which can trip protections even though steady-state demand is within rating, as described in the overview of surge current behavior.
  • Aging or damaged components: degraded capacitors or cooling fans reduce an inverter’s effective capacity over time.
  • Configuration errors: incorrect stringing or mismatched MPPT inputs can concentrate more DC power than a given channel is rated to handle.

Signs, alarms, and protection features to watch for

Inverters usually tell you what’s happening before anything dramatic occurs. Learning to read those signals keeps small issues from becoming expensive ones.

  • Fault codes or LED patterns referencing “overload,” “overtemp,” or “derate” on the display or monitoring app.
  • Flattened production curves where output plateaus below expected peak on clear days, a visual signature of clipping.
  • Repeated auto-recovery cycles, where the inverter shuts down and restarts on its own every few minutes.
  • Physical cues: unusual heat near the enclosure, a burning smell, or an audible fan running constantly.

Frequent auto-recovery is itself a warning sign. Auto-recovery and bypass modes let an inverter ride through brief overloads, but relying on repeated recovery cycles causes cumulative thermal stress that shortens component life, particularly in electrolytic capacitors, according to technical guidance on inverter response to inductive loads. A unit that quietly resets itself ten times a day is not fine. It is accumulating wear you can’t see from the outside.

Sizing limits and how to check your inverter’s oversizing rules

The DC/AC ratio compares your array’s total rated wattage (measured at Standard Test Conditions) to the inverter’s rated AC output. A ratio above 1.0 means more DC capacity than the inverter can convert at once, and installers often choose this intentionally because it boosts energy harvest during cloudy mornings, evenings, and winter months. The tradeoff is more frequent clipping at midday and more time spent running at higher internal temperatures, which manufacturer technical notes link to accelerated wear and potential reductions in inverter lifetime when the ratio runs too high.

Allowed oversizing varies by model, so a general rule of thumb isn’t reliable. To check your own system:

  • Find the inverter’s rated AC output printed on its nameplate or in its datasheet.
  • Add up your panels’ STC wattage (use our solar panel wattage guide if you need a refresher on estimating real-world output).
  • Divide total DC watts by rated AC watts to get your DC/AC ratio, then compare it against the manufacturer’s stated maximum for your specific model.

Some inverters also specify a minimum DC sizing threshold, particularly in three-phase or power-optimizer systems, so both ends of the range matter.

Safe troubleshooting steps you can take at home

Before calling anyone, a few checks can narrow down the cause or resolve it outright.

  1. Open your monitoring app and note any error codes along with the timestamps when clipped or flattened output began.
  2. Turn off or stagger high-draw appliances (AC units, well pumps, electric dryers) one at a time to see whether faults stop.
  3. Inspect the inverter’s ventilation for dust, debris, or blocked intake vents, and clean them if accessible without opening the enclosure.
  4. Log repeated auto-recovery events, including the time of day, outdoor temperature, and what was running on your panel at the time.

Pro Tip: Photograph the inverter’s fault screen each time it trips. A technician can often diagnose the pattern from a handful of timestamped codes faster than from a verbal description.

When to shut down and call a qualified installer

Stop using the system immediately if you notice heat radiating from the enclosure, a burning smell, visible smoke, or fault codes that return within minutes of every reset. These are not conditions to troubleshoot yourself.

A qualified technician will typically check internal cooling fans and heat sinks, capacitor condition, DC wiring and combiner connections, firmware version, and series fuses or breakers. Our solar combiner box checklist covers some of the same inspection points for homeowners who want to understand what’s being checked. Depending on findings, repairs range from a simple firmware update to cooling system service or, in cases of internal component failure, inverter replacement.

How Gridwise supports overload prevention and recovery

We publish practical guidance alongside the hardware we sell, including our walkthrough on verifying solar surge protection, which covers the questions worth asking before you assume your system is protected against inrush spikes from motor-driven appliances. For homeowners evaluating a high-capacity option, our Sol-Ark 15kW hybrid inverter page lists its rated PV input and AC output specifications for anyone sizing a new or replacement system. Our battery sizing guide is also useful context for how hybrid inverters interact with storage during charging.

How Gridwise supports overload prevention and recovery — overview diagram

Why conservative sizing beats chasing maximum output

It’s often better to choose a slightly conservative DC/AC ratio and skip a few watts of theoretical harvest than chase maximum output and live with daily clipping and heat cycling. Monitoring isn’t optional extra credit. It’s the only way to catch cumulative thermal stress before it becomes a failed capacitor. When in doubt, a quick check against your inverter’s datasheet or a conversation with an installer costs far less than early replacement.

Solar solutions that help you avoid overload problems

If your current inverter is undersized for your home’s demand or you’re planning a new installation, matching equipment to your actual load profile up front avoids most overload headaches later. Our Solar Energy Systems collection includes options for homeowners sizing a new or replacement setup, including the Sol-Ark 15kW hybrid inverter for households with higher continuous AC demand or battery backup needs.

Gridwiseliving

A few starting points if you’re ready to look closer:

  • Review the Sol-Ark 15kW specs against your home’s peak simultaneous load before buying.
  • Pair any new system with proper surge protection rather than relying on the inverter alone.
  • If a recent storm may have affected panel performance, our partner’s guide on documenting solar hail damage walks through evidence collection for insurance claims.

Browse our Solar Energy Systems collection to compare options sized for your household’s demand.

FAQ

What should I do if my inverter keeps overloading?

Reduce simultaneous high-draw appliances first and check your monitoring app for specific fault codes and timestamps. If overload events continue after reducing load, or if you notice heat or burning odor, shut the system down and contact a qualified installer.

Is it bad to have too many solar panels for my inverter?

An oversized DC array relative to your inverter’s rated AC output (a high DC/AC ratio) is a common design choice that can boost low-light production, but pushed too far it causes frequent clipping and added heat stress, according to manufacturer oversizing guidance. The right ratio depends on your specific inverter model’s documented limits.

Does a solar inverter stop charging the battery once it’s full?

Hybrid inverters typically reduce or redirect charging current once a battery reaches full capacity to protect the battery and manage power flow, though exact behavior depends on the inverter and battery management system. Check your system’s documentation or our battery sizing guide for how your specific setup manages a full battery.

What are common causes of inverter failure?

Frequent causes include sustained overload and clipping, repeated auto-recovery cycles that stress internal capacitors, inadequate ventilation causing overheating, and aging components that reduce effective capacity over time. Motor startup surges from appliances like well pumps or air conditioners can also trip protections even when steady-state demand is within rating, per surge current fundamentals.

How can I tell if clipping is hurting my system’s long-term performance?

Occasional brief clipping on the sunniest days is normal and not harmful by itself. Frequent, prolonged clipping paired with repeated auto-recovery cycles signals the inverter is running hotter more often, which manufacturer technical notes tie to faster component wear over time.
