Homeowners: Ask These 3 Questions to Verify Solar Surge Protection

Yes, protect your solar system with tiered surge protection: AC, DC and communications SPDs, plus verified grounding. Check that any device carries a Type 1 or Type 2 PV rating, sits mounted close to the inverter with short leads, and ties into a continuous ground path. Before signing off on an install, ask your installer point-blank whether external SPDs and grounding verification are included in the plan.

TL;DR:

  • Properly rated Type 1 or Type 2 PV surge protection devices should be installed close to the inverter on all lines to ensure effective surge diversion.
  • Surge protection devices must be rated for maximum system voltages, with short leads and good grounding to maximize reliability and safety.
  • External SPDs are recommended for communications lines and should be verified via UL standards, with specific markings like VZCA for lightning system compatibility.
  • Grounding and bonding must be continuous and properly executed; disconnected or long leads significantly reduce SPD effectiveness.
  • Regular visual checks of SPD indicators are essential, with replacement needed immediately if the indicator shows exhaustion to maintain system protection.
Gridwiseliving
Build More Energy Independence
Explore Gridwise Living’s durable solar systems and practical home solutions for a more self-reliant, sustainable household.

Table of Contents

Why surge protection matters for residential photovoltaic systems

Surges reach a solar array from several directions. A lightning strike doesn’t need to hit your roof directly: induced surges from a nearby strike, switching events on the utility grid, and ground faults inside your own wiring can all push a damaging voltage spike through the system. Inverters, power optimizers, and monitoring hardware sit at the center of the risk because they contain the sensitive electronics that convert and track your system’s output.

Without surge protective devices in place, a single event can take out an inverter, fry a communications card, or force days of downtime while you wait on a replacement part and a service visit. The financial hit compounds: a damaged inverter means lost production, a possible warranty dispute, and an out-of-pocket repair bill on top of the electricity you’re not generating.

Common damage scenarios include:

  • Inverter failure: a surge enters through the AC or DC side and destroys internal components, halting production until replaced.
  • Optimizer or microinverter loss: smaller, distributed devices can fail quietly, dragging down output without an obvious cause.
  • Monitoring and communications damage: RS485 or Ethernet links carry surge energy into data boards, breaking remote visibility into the system.

SPDs lower the odds of these failures significantly, but they reduce risk rather than eliminate it. A well-specified SPD setup won’t guarantee survival against a direct lightning strike on the array itself.

Where to place SPDs: a tiered defense for AC, DC and communications lines

A solar system has three distinct entry points for surge energy, and each one needs its own device rather than a single catch-all unit.

  1. AC side: Install an SPD at the service entrance or at the inverter’s AC output. Grids with frequent switching events or a history of utility-side disturbances often call for a Type 1 or combined Type 1+2 device, since these can handle the higher energy of surges originating closer to the source.
  2. DC/PV side: Place a PV-rated SPD at the string or combiner box and again at the inverter’s DC input. These devices must be rated for the system’s maximum DC voltage, and only components explicitly marked for photovoltaic use should go here, since general-purpose AC devices aren’t built for PV voltage and fault characteristics.
  3. Communications lines: RS485 and Ethernet runs that are long or exposed to the outdoors act as a surge entry point of their own. Manufacturer technical guidance recommends external SPDs on these lines in many installations, since a surge riding in on a data cable can damage monitoring boards even when the power-side protection holds.

The placement rule that ties all three together: mount each SPD as close as practical to the device it protects, and keep lead lengths short. SolarEdge’s technical note suggests keeping the SPD within roughly 9 meters (30 feet) of the inverter where possible, since longer leads add inductance that reduces how effectively the device clamps a surge. The same guidance notes that when an SPD shares a circuit with string fuses or DC breakers, it needs to sit between the fuse and the inverter. Place it on the wrong side of that fuse, and the string can go unprotected the moment the fuse trips.

How to choose SPDs: types, specs, and markings to verify

Not every SPD on a shelf is built for solar. Type 1 devices handle the highest-energy surges and typically sit at the service entrance; Type 2 devices handle lower-energy events and are common at the inverter or sub-panel; PV SPDs are a distinct category engineered for the DC voltage and fault behavior of a photovoltaic array. A residential system often needs all three in different spots, not one device standing in for the rest.

When comparing a datasheet or an installer’s proposed equipment list, check for:

  • Maximum DC voltage rating: must meet or exceed your array’s operating voltage.
  • Voltage Protection Rating (VPR): the clamped voltage the device lets through during a surge.
  • Nominal discharge current (In): tested at an 8/20 microsecond waveform, this indicates how much repeated surge energy the device can absorb.
  • Maximum discharge current (Imax): the largest single surge the device can survive.
  • MCOV (Maximum Continuous Operating Voltage): the highest voltage the SPD can sit at without triggering.
  • SCCR (Short Circuit Current Rating): how much fault current the device can withstand without becoming a hazard itself.

UL’s guidance on surge protective devices lays out required markings and minimum nominal discharge ratings for devices labeled for PV or lightning-protection-system use, and recommends verifying a device through UL Product iQ before relying on it.

Fact: UL guidance specifies minimum nominal discharge current markings and device category codes (such as VZCA, VZCA2, and DIMV) that distinguish PV SPDs evaluated for lightning-protection-system compatibility from general-purpose surge devices. Asking an installer for the device’s UL CCN reference turns an abstract spec sheet into something you can actually verify.

Grounding, bonding, and installation coordination: what to verify and why it matters

An SPD only works as well as the ground path behind it. The device’s job is to divert surge energy away from your equipment and into the earth, so a weak or inconsistent grounding electrode system undermines even a well-chosen SPD. Bonding every conductive part of the array, including panel frames and racking, to that same ground system keeps surge energy from finding a different path through your wiring or your equipment.

The most common installation mistakes that quietly reduce SPD effectiveness:

  • Separate ground points for the SPD and the main electrical system, instead of one continuous bonded path.
  • Long SPD lead lengths, which add impedance and let more surge voltage reach the protected device.
  • Unbonded array frames, leaving the racking and panel mounts outside the grounding system entirely.

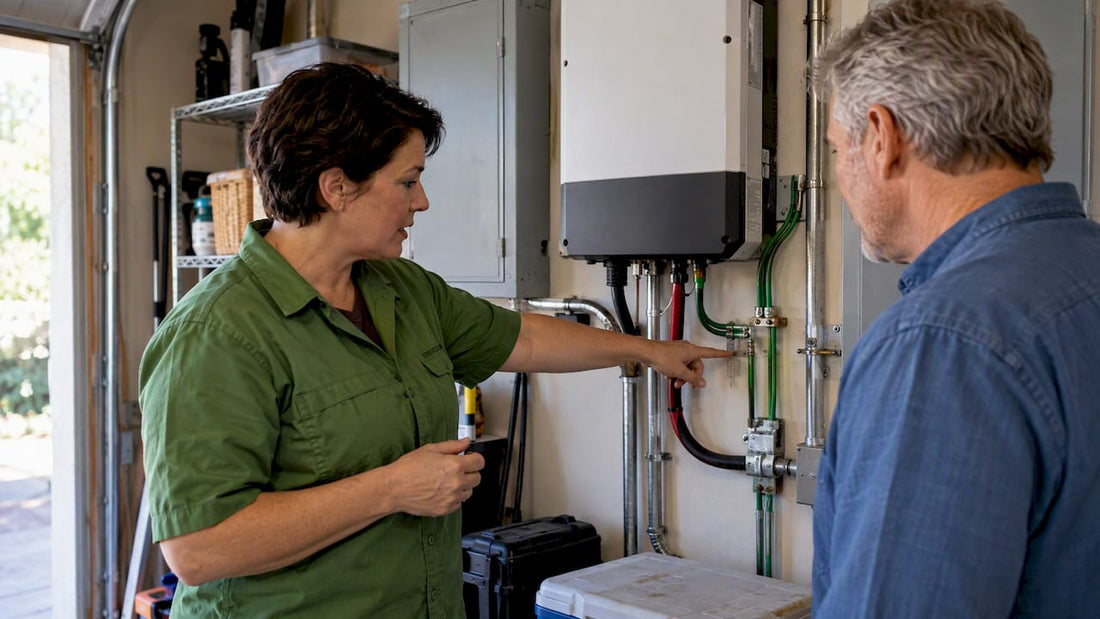

Pro Tip: Ask your installer to show you where the SPD’s ground conductor physically connects, and request a continuity or ground-resistance test result as part of the handoff paperwork.

A short conversation during the install walk-through, rather than after a failure, is the cheapest insurance you’ll buy on this system.

Maintenance and verification: how to tell an SPD is working and when to replace it

Most SPDs make their status easy to read. A visual indicator, commonly green for normal and red for exhausted, tells you at a glance whether the internal surge-suppression element has already absorbed enough events to need replacement. Many residential-grade units use hot-swappable cartridges, letting you or an installer pull a spent module and seat a new one without rewiring the whole device.

  1. Check the indicator during routine system inspections and immediately after any major electrical storm.

  2. Replace the cartridge or unit as soon as it shows red, since a failed SPD offers no protection even though it’s still sitting in the enclosure.

  3. Notify your installer and ask them to recheck the associated grounding and bonding whenever a replacement happens, since a failure sometimes points to a deeper wiring issue.

An annual visual check, paired with a look right after storm season, catches most problems before they become a damaged inverter. If your system includes production monitoring, a sudden unexplained drop in output is also worth treating as a prompt to check your SPDs.

Limitations and common myths: realistic expectations for surge protection

Surge protective devices mitigate transients. They do not make a solar system immune to a direct lightning strike, and no manufacturer or standards body claims otherwise. Effective protection depends on the whole system working together: a coordinated setup that includes external lightning protection where relevant, a bonded and continuous grounding system, and SPDs placed and rated correctly for each line they guard.

Diagram of coordinated solar surge protection

What a properly installed tiered SPD setup does deliver is a meaningfully lower risk of component damage from the far more common events, nearby lightning-induced surges and utility switching transients, along with less downtime and lower repair costs across most surge events a system will actually see over its lifetime. It’s worth remembering, too, that surge protection and physical storm resilience are separate problems, as explained in detail in Prove solar hail damage: Evidence and tests for U.S. owners. A hail-resistance test rating protects against a cracked panel, not an electrical transient, and the two kinds of protection don’t substitute for each other.

Gridwise perspective on surge protection and product fit

Our approach to home energy equipment starts with the same principle that applies to SPDs: durable components and installation choices that stay simple to maintain over years of use, not just on install day. Solar systems and generators selected with a durability-first standard pair naturally with the kind of tiered, verifiable surge protection outlined here rather than fighting against it.

— Gridwise

Pilot Gridwise products for homeowners seeking integrated, durable solar backup

If you’re weighing a new solar setup or backup power alongside this surge protection checklist, our solar energy systems collection and the Powerhouse Gen 2 whole home solar generator are worth a look as integrated options built for durability and straightforward upkeep.

Gridwiseliving

  • Browse the solar energy systems collection to compare system sizes and components.
  • Ask about SPD coverage and grounding verification as part of any quote you request.
  • Pair whole-home backup with generators if you want redundancy beyond the array itself.

Confirming surge protection and grounding details before you buy, rather than after an install, is the simplest way to get the setup right the first time.

FAQ

How to boost solar power?

Keeping panels clean, free of shading, and properly angled toward the sun improves output, and a correctly sized inverter with well-maintained connections keeps the system running at its rated capacity. Protecting the inverter and optimizers with surge devices also helps indirectly, since a surge-damaged component can quietly reduce output long before it fails outright.

What is a voltage surge protector?

A voltage surge protector, or surge protective device (SPD), is a component that diverts excess voltage away from connected equipment during a transient spike, clamping the voltage that reaches sensitive electronics. In a solar system, separate SPDs are typically installed on the AC side, the DC side, and communications lines, since each carries different voltage and surge characteristics.

Why are people getting rid of solar panels?

Reasons vary by household and aren’t tied to a single documented cause, but they often include moving homes, dissatisfaction with a past installer, or damage from storms and equipment failures that went unaddressed. Proper surge protection and grounding reduce one specific cause, electrical damage to inverters and optimizers, that can otherwise push an owner toward costly repairs or removal.

What is the 20% rule for solar?

It most commonly comes up in discussions of oversizing a system’s DC capacity relative to inverter AC output, which is a separate design question from surge protection.
