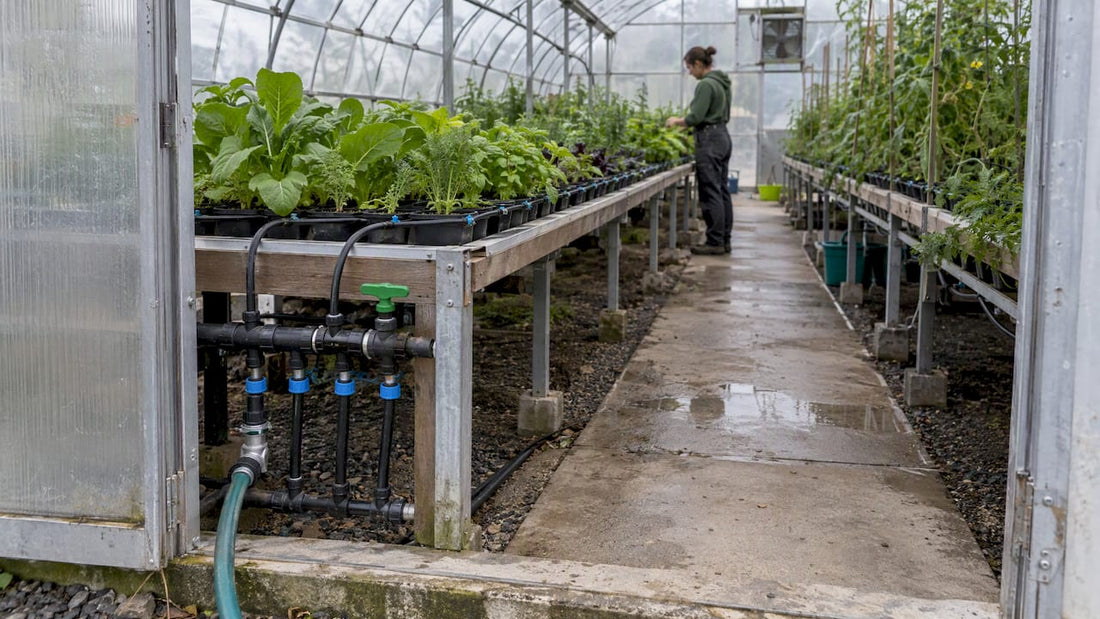

Greenhouse benches supplied by drip irrigation lines

Gridwise Plan: Greenhouse Irrigation for Small Growers, Evidence Based

For most greenhouses, drip or micro-irrigation is the right starting point, with a separate low-pressure mist zone reserved for propagation trays. Before buying anything, measure your water source flow, sketch your irrigation zones, and specify filtration and backflow prevention. Start with a bucket flow test and a simple zone sketch on paper: those two steps shape every decision that follows.

TL;DR:

  • Measure your water flow with a bucket test and plan zones based on crop needs to prevent pressure drops and ensure uniform watering.
  • Drip and micro-irrigation systems can reduce water use by up to 50% and lower disease risk compared to overhead sprinklers.
  • Filtration and backflow prevention are essential to prevent clogging and protect water quality; never omit these to save costs.
  • Use pressure-compensating emitters and appropriate manifold sizing to maintain consistent flow across long lateral runs.
  • For propagation, set up a separate mist or fog zone, and regularly check filters, emitters, and valves to maintain system reliability.
Gridwiseliving
gridwiseliving.com
Build A More Self-Reliant Greenhouse
Explore Gridwise Living’s durable greenhouse solutions for growing food sustainably and taking greater control of your home environment.
Explore greenhouse solutions

Table of Contents

Which greenhouse irrigation system fits your setup?

Drip and subsurface drip deliver water directly to the root zone through emitters or buried tape, cutting evaporation and keeping foliage dry. Drip irrigation can reduce water use by up to 50% compared with overhead sprinklers, which also lowers disease pressure from wet leaves. Micro-sprays cover a wider pattern around each plant and work well for mixed container plantings where emitter placement would be tedious.

Overhead sprinklers water fast and suit seed flats or dense ground beds, but they wet foliage and waste water through evaporation and runoff between rows. Mist and fog systems create fine droplets for humidity and rooting cuttings, not for general crop watering. Subirrigation, including ebb-and-flow benches, wicks water up from below and suits potted ornamentals and some vegetable starts. Hydroponic recirculating systems like NFT deliver nutrient solution directly to roots and demand tighter control over flow and oxygen levels.

  • Drip/micro: lowest water use, lowest disease risk, moderate setup cost and labor.
  • Overhead: fastest coverage, highest disease risk, lowest per-emitter cost.
  • Mist/fog: essential for propagation, not a substitute for bench or bed watering.
  • Subirrigation/ebb-and-flow: good for containers, requires drainage and pump cycling.
  • Hydroponic (NFT): highest control and yield potential, highest technical demand.

Home greenhouses under 200 square feet usually do well with a single drip zone and a simple timer. Commercial operations typically need multiple zones, pressure regulation, and injectors for fertigation, which the next sections cover in detail.

Planning your zones, flow budget, and pump sizing

Start by measuring what your water source can actually deliver. Fill a 5-gallon bucket from your spigot or well line and time it: if it takes 60 seconds, you have 5 gallons per minute, or 300 gallons per hour, to budget across all zones. Each zone’s total emitter flow should stay comfortably under that ceiling so pressure holds steady when more than one zone runs.

  1. Measure source flow with a bucket test and convert to gallons per hour.
  2. Sketch zones by crop type and water demand (propagation, benches, beds).
  3. Add up emitter or sprayer flow per zone and compare it against your flow budget.
  4. Choose a pump or pressure tank only if your static pressure can’t meet target operating pressure.
  5. Size manifolds and laterals so pressure loss stays within the range emitters are rated for.

Drip systems typically run at 15 to 25 psi at the emitter, while overhead sprinklers need higher pressure, often 30 psi or more, to throw water evenly. If your well or municipal line can’t hold that pressure under load, a small booster pump or a pressure tank smooths out the swings. Manifold sizing, pump selection, and pressure planning are described as key design elements for uniform delivery, and undersized manifolds are a common cause of weak flow at the far end of a zone.

Lateral length matters more than most growers expect. Long runs lose pressure along their length, so pressure-compensating emitters and larger manifold diameters help keep the pressure differential within an acceptable range rather than shortening every run. Keep propagation, bench, and high-demand crop zones on separate valves: a single schedule across different plant needs guarantees that someone gets too much or too little water.

Three irrigation zones with pressure flow paths

Pro Tip: Run your longest lateral first during testing, since it will reveal pressure problems before they show up as wilted plants at the far end of the bench.

Choosing mains, laterals, emitters, filters, and backflow protection

PVC pipe handles buried mains well, while flexible polyethylene tubing is easier to route for laterals inside the greenhouse and tolerates freeze-thaw cycles better in unheated structures. Schedule 40 PVC is worth the extra cost for mains carrying high flow to multiple zones, while standard poly tubing is fine for laterals feeding individual emitters.

  • Point emitters suit potted plants where each container needs a measured, repeatable dose.
  • Drip tape works well for in-ground beds and rows, with built-in emitters spaced evenly.
  • Pressure-compensating emitters deliver even flow despite pressure changes along a lateral, which matters most on longer runs or sloped sites.
  • Micro-sprayers cover a wider area per outlet, useful for mixed benches.

Filtration isn’t optional for drip systems. Screen filters handle relatively clean municipal water, disk filters catch finer particles from well water, and sand or media filters are needed for water with algae or heavy organic content. Filtration, emitter selection, pressure compensation, and air/vacuum relief valves are described as essential to prevent clogging and keep emitter output consistent across a zone.

Backflow prevention protects your water supply. Municipal cross-connection rules often require a reduced-pressure (RP) backflow assembly whenever you inject fertilizer or other chemicals into an irrigation line, since a pressure drop could otherwise siphon that solution back into the potable supply. If you plan to fertigate, check your local code before tying into a home or municipal water line.

Reduced-pressure assembly blocking irrigation backflow

Injectors come in two basic types: proportional injectors meter fertilizer in a fixed ratio to flow, while nonproportional injectors dose a set amount per cycle regardless of flow rate. Either type should include a check valve and backflow protection as a safety interlock, never run directly off an unprotected tap.

Installing and commissioning your system step by step

  1. Lay out zones on the ground with stakes or chalk before cutting any pipe.
  2. Install the main line, header, filter, and backflow assembly as one connected unit near the water source.
  3. Run laterals to each zone and connect emitters or drip tape according to your plan.
  4. Install valves at each zone and wire them to your controller.
  5. Flush the entire system before capping lines, to clear debris that could clog emitters.
  6. Cap laterals and turn on each zone individually to check for leaks and even flow.

Commissioning isn’t finished once water comes out. Check flow at the first and last emitter in each zone: a large difference points to pressure loss or a clogged filter upstream. Measure pressure at the manifold inlet and at the end of the longest lateral, since a wide drop confirms you need pressure-compensating emitters or a shorter run. Confirm air and vacuum relief valves sit at the system’s high points, where they belong.

For the first week, log flow and pressure readings daily, along with any soggy or dry spots you notice on beds. That log catches small problems, a half-closed valve, a cracked fitting, before they become a dead row of seedlings.

Pro Tip: Walk the greenhouse at the exact moment a zone shuts off, since pooling water or a hissing fitting is easiest to spot in that first minute of quiet.

Setting up controllers, sensors, and watering schedules

A basic mechanical timer handles a single zone on a fixed schedule and suits most home greenhouses. Multi-zone digital controllers let you run different schedules for propagation, benches, and beds from one panel, and climate-linked controllers adjust watering based on temperature or light readings rather than the clock alone. Automated systems reduce labor and improve delivery precision compared with manual watering, which matters most once you’re running more than one or two zones.

  • Propagation zones need short, frequent pulses rather than long soaks.
  • Container crops should get a leaching allowance of 10 to 20% extra water beyond the substrate’s holding capacity to flush excess salts.
  • NFT and ebb-and-flow systems need tuned ON/OFF cycles, not continuous flow, to avoid flooding root zones.
  • Soil moisture sensors or ET-based controllers are worth adding once you’re managing several zones with different crops.

Solenoid valves tie directly into most digital controllers and let each zone run independently without manual switching.

Setting up propagation misting, capillary mats, and ebb-and-flow

Propagation trays need higher humidity and more frequent, lighter watering than mature plants. This is why they belong on a separate mist or fog zone rather than sharing a drip schedule. Mist chambers deliver humidity through short pulses timed by a programmable controller, and a small chamber can be built at modest cost with basic foggers and a timer.

  • Mist cycles often run just seconds on, several minutes off, adjusted as cuttings root.
  • Ebb-and-flow benches need ON/OFF cycles tuned to crop and root development to avoid pooling and oxygen starvation.
  • NFT systems depend on continuous, shallow flow, since any interruption risks root drying in the channel.

Keeping your system running: maintenance and troubleshooting

  1. Clean screen or disk filters on a regular schedule, more often if your water source carries sediment or algae.
  2. Walk zones periodically checking for clogged emitters, visible as dry spots or weak flow compared with neighbors.
  3. Confirm air and vacuum relief valves at system high points stay clear of debris, since vacuum relief valves prevent suction that draws debris into laterals during drain-down.
  4. Test backflow assemblies annually and before each growing season.
  5. Before winter, drain lines, remove filters for cleaning, and store injectors indoors if freezing is a risk.

Pro Tip: If one zone runs weak, check the filter first. A clogged filter mimics a dozen other problems and takes five minutes to rule out.

Gridwise installer checklist for a reliable irrigation build

Before install day, we recommend a short checklist: confirm your bucket flow test, set pressure tank cut-in and cut-out points, match filter type to your water source, and mark vacuum vent locations on your zone sketch. Keep extra fittings, a spare filter cartridge, and teflon tape on hand so a small fix doesn’t stall the whole job.

If you’re building inside one of our greenhouses, check structural compatibility for mounting manifolds and headers before you drill. For water quality concerns, our water filtration and water storage categories cover both ends of a dependable irrigation source. Support may be able to help match components to your project if you have questions about fit.

What installers wish growers knew before planting

Three lessons come up on nearly every irrigation job: measure your flow before you buy anything, zone by plant need rather than convenience, and never skip filtration or backflow protection to save a few dollars. Multi-zone plumbing follows similar principles to home plumbing design, where isolating zones prevents one fixture’s demand from starving another. Before you plant, walk your checklist one more time.

— Gridwise

How we can help you build a reliable irrigation setup

A dependable irrigation setup depends on the structure and water systems around it as much as the pipes themselves. Our greenhouses collection gives you a range of structures to match your zone plan, and our water filtration and water storage options support the filtration and supply steps covered above.

Gridwiseliving

  • Browse greenhouses sized for your irrigation zone plan.
  • Compare water filtration options matched to your source water.
  • Check water storage for rainwater capture or backup supply.
  • Review generators to keep pumps and controllers running during an outage.

If you have questions about matching a greenhouse or filtration system to your irrigation plan, support may be able to walk through compatibility with you. Visit Gridwise Living to compare options and get started.

FAQ

What is the 30/30 rule for irrigation?

The commonly cited 30/30 rule isn’t a standard engineering specification covered in our research, so definitions vary by source.

What is the best irrigation system for a greenhouse?

Drip or micro-irrigation suits most greenhouse crops because it delivers water directly to the root zone and can cut water use by up to 50% compared with overhead sprinklers. Propagation areas need a separate mist or fog zone, since cuttings and seedlings require different humidity and frequency than mature plants.

How do I make a greenhouse irrigation system?

Start with a bucket flow test to measure your water source, sketch your zones by crop need, then install mains, filters, and backflow protection before running laterals and emitters. Planning the full system before installing components prevents the uneven pressure distribution that comes from adding pipe without an overall design.

What is the best watering system for a small greenhouse?

A single-zone drip or micro-irrigation setup on a basic timer handles most small home greenhouses well, since it uses less water and keeps foliage dry compared with overhead watering. If you’re starting seedlings, add a small, separate mist zone rather than running everything on one schedule.
