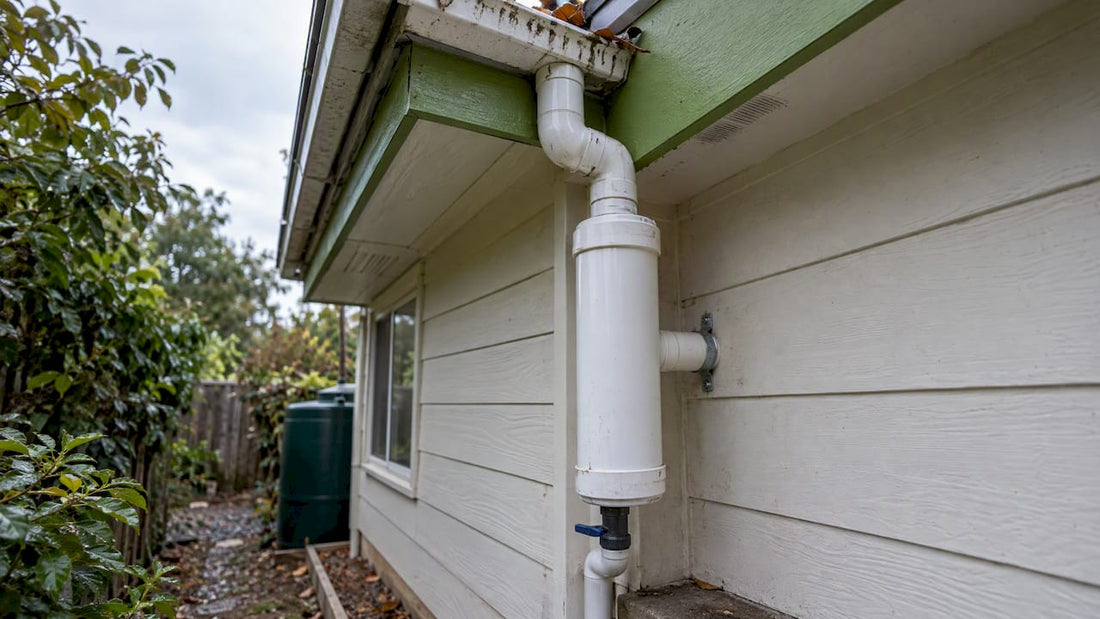

First flush diverter connected to roof downspout

First Flush Diverter: How It Works, Sizing and Setup

A first flush diverter catches the first batch of roof runoff in a separate chamber and sends it away from your rain barrel or cistern. Once that chamber is full, the cleaner water that follows flows on into storage. It is one of the cheapest ways to keep dust, droppings and roof grit out of your tank, and it only works if it is sized for your roof and drains itself between storms.

This guide covers what a diverter does, how big it needs to be, how to install it, how to keep it working and when you can reasonably skip one.

Gridwiseliving
Build a More Self-Reliant Home
Explore Gridwise Living’s practical home solutions, including greenhouses and solar systems, for more sustainable everyday living.

TL;DR

  • A first flush diverter holds the dirtiest initial runoff in a chamber so it never reaches your tank.
  • A common rule of thumb is at least 10 gallons of diversion per 1,000 square feet of roof; some guidance runs higher, up to 1 to 2 gallons per 100 square feet.
  • It needs a slow drain or clean-out valve so the chamber is empty before the next rain.
  • It is not a filter: you still need debris screening at the inlet and treatment if you drink the water.
  • Check local plumbing and rainwater rules before you build.

Table of Contents

What a first flush diverter does

Between storms, a roof collects whatever settles on it: dust, pollen, leaf litter, bird and rodent droppings, insects. The first rain rinses most of that into your gutters. Texas A&M’s rainwater harvesting program describes a first-flush diverter as a device that separates the initial runoff from the storage container, because that first water carries the most debris from the roof surface.

You will also hear it called a roof washer, and the two terms overlap in everyday use. Strictly, a diverter sacrifices the first volume of water by trapping it in a chamber, while a roof washer is a settling or filtering tank that cleans water on its way to storage. Oklahoma State Extension notes that roof washers are often used in addition to first-flush diverters, so treat them as complementary rather than rivals.

How it works, step by step

  1. Rain hits the roof and runs into the gutter and downspout.
  2. The water enters the diverter, usually a vertical standpipe teed off the downspout, and fills the chamber from the bottom up.
  3. A float, ball or similar seal shuts off the chamber when it is full. According to Oklahoma State Extension, the diverter holds the initial runoff until the chamber fills, and then cleaner water flows to the cistern.
  4. A small trickle drain or clean-out valve at the bottom empties the chamber slowly after the storm, so it is ready for the next one.

The first runoff often has higher concentrations of contaminants, including dust and droppings, according to the same Oklahoma State fact sheet. The point of the diverter is simply to keep that water out.

Is a first flush diverter worth it?

For most households collecting rain into a tank, yes. The University of Hawaii’s extension service calls first-flush devices a low-cost, low-tech way to improve water quality, and reports studies showing a large drop in fecal bacteria when the roof is flushed before water enters the tank. Even a simple setup helps: the Hawaii catchment guidelines say a basic system will still reduce the contaminants entering the tank.

That said, a diverter is not mandatory in every setup. The University of Arizona Cooperative Extension notes that some harvesters skip diverter pipes and roof washers and rely on a basket strainer at the cistern inlet. Reasonable cases for skipping or simplifying:

  • Garden-only rain barrels. If the water goes on ornamental beds, the organic matter in the first rain is not a big concern, and you may prefer to just disconnect the barrel for the first storm after a long dry spell.
  • Very low-maintenance tolerance. A diverter that never gets cleaned or drained can clog and become a failure point. If you will not check it, a good inlet screen and a manual bypass may serve you better.

Cases where we would not skip one:

  • Water that goes through pumps, drip lines, or appliances. Sediment wears pumps and clogs emitters.
  • Water you plan to treat for household use. Cleaner input makes every downstream filter and disinfection step work easier and last longer.
  • Roofs under trees, in dusty areas, or with long dry seasons. Engineering LibreTexts points out that long dry seasons, heavily polluted surroundings and porous collection surfaces all increase the pollution on a roof before rain arrives.

How much water should a diverter remove?

This is the question that trips most people up, and the honest answer is that published rules differ.

Guideline Diversion volume Source
General rule of thumb At least 10 gallons per 1,000 sq ft of roof Oklahoma State Extension
Texas guidance 1 to 2 gallons per 100 sq ft of roof Texas A&M AgriLife Extension

Converted to the same unit, the Texas range is 10 to 20 gallons per 1,000 square feet, so the two guidelines overlap at the low end. Texas A&M adds that chamber size is still debated and should reflect local rainfall intensity and surroundings such as tree cover.

What changes the number

Virginia Tech Extension says sizing depends on the amount and type of debris, the number of dry days between rains, and what you will use the water for. Oklahoma State adds contributing roof area and rainfall patterns to the list. In practice:

  • More dry days, more debris, more overhanging trees: go toward the higher end.
  • Frequent rain that keeps the roof rinsed: the low end is usually enough.
  • Drinking-water or indoor use: size up, and treat the water afterward.

The Virginia Department of Health guidance also reminds designers that roof materials and local air quality affect the quality of what you harvest, so a diverter is only one part of the picture.

Worked example: a 1,500 square foot roof

Say the roof area draining to one downspout is 1,500 square feet.

  • At the Oklahoma State rule of thumb (10 gallons per 1,000 sq ft): 15 gallons.
  • At the top of the Texas range (2 gallons per 100 sq ft): 30 gallons.

Oklahoma State lists a pipe length for each gallon you want to hold; for a 4-inch pipe it is approximately 18.5 inches per gallon. For 15 gallons that is about 278 inches, or roughly 23 feet of 4-inch standpipe. For 30 gallons it is about 46 feet, which is why larger roofs often use a tank or barrel as the diversion chamber, or split the roof across several downspouts, each with its own smaller diverter.

Remember to size per downspout, not per house. Measure only the roof area that feeds that one pipe.

Types of first flush diverters

  • Standpipe diverters. A vertical pipe off a T-joint, with a ball float and a drain cap at the bottom. Simple, cheap and the most common home setup.
  • Downspout kits. Prefabricated units that fit a 3-inch or 4-inch downspout. Convenient when you have one or two downspouts.
  • In-ground diverters. A buried chamber, handy where you do not want a tall pipe on a wall, but harder to inspect and clean.
  • Barrel or tank diverters. A dedicated container takes the first flush before overflow continues to the main tank. Good for large roofs.
  • Homemade builds. The University of Hawaii notes that commercial versions exist and a device can also be built from store-bought parts. If you build your own, use a float or other seal, a removable cleanout cap and a controlled slow drain.

One detail from Hawaii’s guidelines: more sophisticated systems include floating-ball valves to prevent backflow. A ball seal is a cheap upgrade that keeps dirty water from creeping into the clean line.

Installing a first flush diverter

Installation depends on your downspout and tank, but the logic is the same everywhere.

  1. Measure the roof area per downspout and choose the diversion volume from the guidelines above.
  2. Pick the location. Install a T-joint at the downspout or in the pipe leading to the tank, so the first flush goes into the diverter. The University of Arizona advises positioning it so the first, dirtiest runoff enters the diverter while later, cleaner water goes to the cistern.
  3. Keep the base off your foundation. Hawaii’s guidelines warn against placing diverters where drainage water could undermine the tank foundation. Slope the drain outlet away from the tank pad and the house.
  4. Plan where the drained water goes. A trickle drain still releases water. Send it to a planted bed, a gravel area or a properly graded path rather than letting it pool. Our partner-free tip: grading downspout drainage with a consistent slope keeps that discharge moving away from structures.
  5. Make it accessible. Mount the cleanout cap where you can reach it without a ladder.
  6. Add inlet screening at the tank, since a diverter does not catch leaves and larger debris on its own.
  7. Check local rules. Oklahoma State recommends considering local plumbing, building, neighborhood and environmental codes. Rainwater collection rules vary by state; our guide to rainwater harvesting laws in the U.S. is a good place to start.

If your gutters feed a greenhouse, the same logic applies at a smaller scale. See how gutter systems shape greenhouse production before choosing where to tee in a diverter.

Draining and maintaining it

A diverter that is full of old water does nothing for the next storm. Oklahoma State Extension recommends cleaning out the diverter after every storm event while the system is in use, and using a trickle drain or clean-out valve to make sure the chamber is empty for subsequent rain.

A simple routine:

  • After each storm in the first season: open the cleanout, flush out sediment, close it up. Once you know how your roof behaves, you can ease off.
  • Check the slow drain. If the chamber is still full a day or two after rain, the drain hole is clogged or too small. If it empties in minutes, it is too large and the chamber will not fill before clean water arrives.
  • Inspect the float or seal for debris that stops it from closing.
  • Clear gutters and screens before the rainy season and after leaf fall.
  • Winter: in freezing climates, drain the chamber and open the cleanout so ice does not crack the pipe.

In very dry regions, the University of Hawaii suggests the diverted water could be captured for secondary uses instead of being thrown away, if your setup allows it. Watering non-edible plants is the obvious use.

Limits of a first flush diverter

A diverter is a pre-storage step, not a purification system. It does not remove dissolved contaminants, and it does not make water drinkable. The University of Arizona says roof washers may be needed where debris loads are a problem, and when water is used for drinking, you also need filtration and disinfection downstream.

Rainwater diverter and downstream treatment stages

If that is your goal, read our walkthrough on how to make rainwater drinkable with first flush and UV, and test your water before choosing equipment, as we explain in cistern water filtration for homeowners. For a small dwelling, a rainwater-first tiny house water system shows where a diverter fits in maintainable plumbing.

Perspective: what we see in home water systems

We sell water storage, filtration and garden equipment to homeowners who want more self-reliance, and the same pattern comes up in how people plan rainwater. They shop for the tank first and think about the roof last. We would reverse that. The roof, the gutters and the first few gallons of every storm decide how clean your stored water is before it ever touches a filter.

Perspective: what we see in home water systems — overview diagram

Our advice is to treat the diverter as the first stage of a chain: screen, divert, store, filter, then disinfect if the water will be used indoors. Skipping the first two puts all the load on the last two. A little maintenance at the top of the chain is cheaper than replacing cartridges and pump parts.

We also think simple beats clever. A diverter you can reach, see and drain in thirty seconds will be used. A fancy one hidden behind a fence will not.

— Gridwise

Build the rest of your water system

Once the diverter is sorted, you need somewhere to put the water and a way to treat it. Browse our water storage range for tanks sized to a typical home or garden setup, and our water filtration collection for the stage after the tank. If the water is headed for a greenhouse, our greenhouse range and the greenhouse irrigation plan will help you match supply to demand.

FAQ

What is a first flush diverter for a rain barrel?

It is a small chamber, usually a vertical pipe, that traps the first runoff from your roof before water enters the barrel. When the chamber fills, a float closes it and clean water flows on to the barrel. A slow drain empties the chamber afterward.

How much water should a first flush diverter divert?

A common rule of thumb is at least 10 gallons per 1,000 square feet of roof, and Texas guidance runs as high as 1 to 2 gallons per 100 square feet. Choose the higher end if your roof is dusty, under trees or sees long dry spells between storms.

Do I need to empty a first flush diverter by hand?

Not if it has a trickle drain, which empties the chamber slowly after the storm. You should still open the cleanout and rinse out sediment, and Oklahoma State Extension recommends doing that after every storm while you are using the system.

Can a first flush diverter make rainwater safe to drink?

No. It reduces the debris and contaminants entering the tank, and studies cited by the University of Hawaii show a large drop in fecal bacteria, but water for drinking still needs proper filtration and disinfection. Test the water and talk to your local health department about rules in your area.
